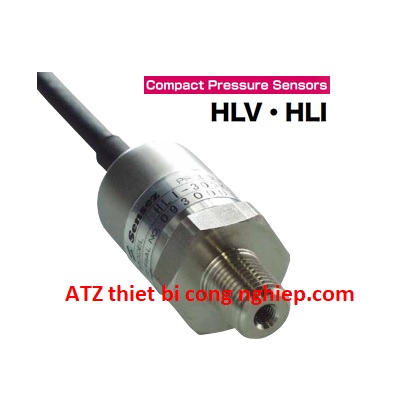

Compact Pressure Sensors HLV・HLI
Pressure sensor with a welded structure that does not use an O-ring in the wetted part
■Characteristics
- ●The wetted part is made of SUS316 or SUS316L that has high corrosion resistance.
- ●Support of a wide range of pressure media such as gas and medicinal solution
- ●Negative pressure and compound pressure types are also available.
■Specifications
●Accuracy：± 0.5％ F.S. or less
●Output signal of 1 to 5 VDC or 4 to 20 mADC from a built-in amplifier circuit
●Overpressure：＜HLV＞200% of the rated pressure
＜HLI＞150% of the rated pressure
■Use examples and track record
- ■Discharge pressure measurement for compressors
- ■Discharge pressure measurement for pumps
- ■Level measurement for open tanks
- ■Pressure control for pure water production devices
- ■Gas pressure measurement for refrigerators
- ■Filter clogging detection
■Industries where our products are widely used
Precision equipment, semiconductors/liquid crystal, machinery, food/drug production, industrial material, etc.
| Model | Rated pressure |
|---|
| HLVN-100KP | 0～−100kPa |
| HLV-020KP | 0～20kPa |
| HLV-050KP | 0～50kPa |
| HLV-100KP | 0～100kPa |
| HLV-300KP | 0～300kPa |
| HLV-500KP | 0～500kPa |
| HLV-001MP | 0～1MPa |
| HLV-002MP | 0～2MPa |
| HLIN-100KP | 0～−100kPa |
| HLI-020KP | 0～20kPa |
| HLI-050KP | 0～50kPa |
| HLI-100KP | 0～100kPa |
| HLI-300KP | 0～300kPa |
| HLI-500KP | 0～500kPa |
| HLI-001MP | 0～1MPa |
| HLI-002MP | 0～2MPa |
