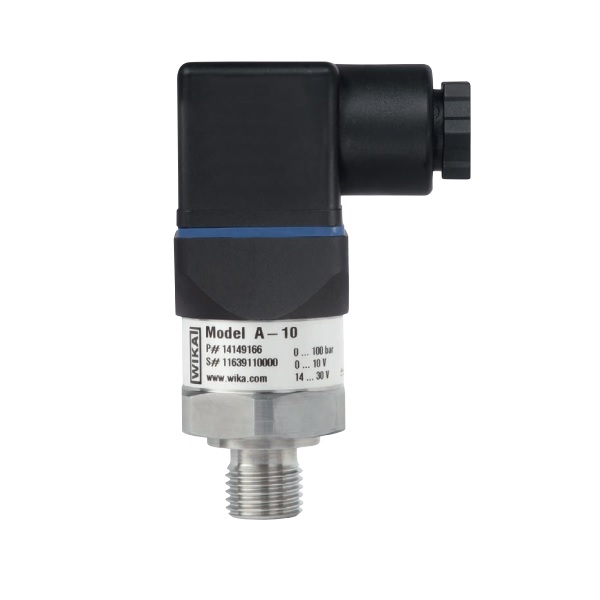

Pressure Transmitter - Cảm biến áp suất A-10 hãng Wika , P# 12719316 với thông số kỹ thuật như sau :

For general Applications
Wetted parts: 316L
Case: 316L
Non-linearity: 0.5% BFSL
Unit: bar
Pressure type: gauge
Measuring range : 0...40 bar
Process connection: G 1/4 A DIN EN ISO 1179-2
Sealing: NBR
Permissible medium temperature: 0...+80 °C
Output signal: 4 ... 20 mA, 2-wire
Power supply: 8...30 V DC
Electrical connection: valve connector, size A
Approvals: cULus

Kích thước của Cảm biến áp suất A-10 hãng Wika

Tiêu chuẩn kết nối cơ khí của Cảm biến áp suất A-10 hãng Wika

Soket đấu dây

Model thông dụng - Hàng có sẵn kho :

WIKA A-10 ; P# : 14182731  ;  4 ... 20 mA, 2-wire; 0...0.05 bar gauge
WIKA A-10 ; P# : 14182732  ;  4 ... 20 mA, 2-wire; 0...0.1 bar gauge
WIKA A-10 ; P# : 14182733  ;  4 ... 20 mA, 2-wire; 0...0.16 bar gauge
WIKA A-10 ; P# : 14182734  ;  4 ... 20 mA, 2-wire; 0...0.25 bar gauge
WIKA A-10 ; P# : 14182736  ;  4 ... 20 mA, 2-wire; 0...0.4 bar gauge
WIKA A-10 ; P# : 14116790  ;  4 ... 20 mA, 2-wire; 0...0.6 bar gauge
WIKA A-10 ; P# : 12719049  ;  4 ... 20 mA, 2-wire; 0...1 bar gauge
WIKA A-10 ; P# : 12719405  ;  4 ... 20 mA, 2-wire; 0...1.6 bar gauge
WIKA A-10 ; P# : 12719243  ;  4 ... 20 mA, 2-wire; 0...2.5 bar gauge
WIKA A-10 ; P# : 12719251  ;  4 ... 20 mA, 2-wire; 0...4 bar gauge
WIKA A-10 ; P# : 12719391  ;  4 ... 20 mA, 2-wire; 0...6 bar gauge
WIKA A-10 ; P# : 12719260  ;  4 ... 20 mA, 2-wire; 0...10 bar gauge
WIKA A-10 ; P# : 12719286  ;  4 ... 20 mA, 2-wire; 0...16 bar gauge
WIKA A-10 ; P# : 12719308  ;  4 ... 20 mA, 2-wire; 0...25 bar gauge
WIKA A-10 ; P# : 12719316  ;  4 ... 20 mA, 2-wire; 0...40 bar gauge
WIKA A-10 ; P# : 12719324  ;  4 ... 20 mA, 2-wire; 0...60 bar gauge
WIKA A-10 ; P# : 12719383  ;  4 ... 20 mA, 2-wire; 0...100 bar gauge
WIKA A-10 ; P# : 12719375  ;  4 ... 20 mA, 2-wire; 0...160 bar gauge
WIKA A-10 ; P# : 12719332  ;  4 ... 20 mA, 2-wire; 0...250 bar gauge
WIKA A-10 ; P# : 12719341  ;  4 ... 20 mA, 2-wire; 0...400 bar gauge
WIKA A-10 ; P# : 12719367  ;  4 ... 20 mA, 2-wire; 0...600 bar gauge
WIKA A-10 ; P# : 14182737  ;  0 ... 10 V, 3-wire; 0...0.05 bar gauge
WIKA A-10 ; P# : 14182738  ;  0 ... 10 V, 3-wire; 0...0.1 bar gauge
WIKA A-10 ; P# : 14182739  ;  0 ... 10 V, 3-wire; 0...0.16 bar gauge
WIKA A-10 ; P# : 14182740  ;  0 ... 10 V, 3-wire; 0...0.25 bar gauge
WIKA A-10 ; P# : 14182741  ;  0 ... 10 V, 3-wire; 0...0.4 bar gauge
WIKA A-10 ; P# : 14116248  ;  0 ... 10 V, 3-wire; 0...0.6 bar gauge
WIKA A-10 ; P# : 12852822  ;  0 ... 10 V, 3-wire; 0...1 bar gauge
WIKA A-10 ; P# : 12963446  ;  0 ... 10 V, 3-wire; 0...1.6 bar gauge
WIKA A-10 ; P# : 12909913  ;  0 ... 10 V, 3-wire; 0...2.5 bar gauge
WIKA A-10 ; P# : 12725421  ;  0 ... 10 V, 3-wire; 0...4 bar gauge
WIKA A-10 ; P# : 12824837  ;  0 ... 10 V, 3-wire; 0...6 bar gauge
WIKA A-10 ; P# : 12725057  ;  0 ... 10 V, 3-wire; 0...10 bar gauge
WIKA A-10 ; P# : 12784720  ;  0 ... 10 V, 3-wire; 0...16 bar gauge
WIKA A-10 ; P# : 12873315  ;  0 ... 10 V, 3-wire; 0...25 bar gauge
WIKA A-10 ; P# : 12910903  ;  0 ... 10 V, 3-wire; 0...40 bar gauge
WIKA A-10 ; P# : 12725448  ;  0 ... 10 V, 3-wire; 0...60 bar gauge
WIKA A-10 ; P# : 12850838  ;  0 ... 10 V, 3-wire; 0...100 bar gauge
WIKA A-10 ; P# : 12887430  ;  0 ... 10 V, 3-wire; 0...160 bar gauge
WIKA A-10 ; P# : 12725111  ;  0 ... 10 V, 3-wire; 0...250 bar gauge
WIKA A-10 ; P# : 12725102  ;  0 ... 10 V, 3-wire; 0...400 bar gauge
WIKA A-10 ; P# : 12850781  ;  0 ... 10 V, 3-wire; 0...600 bar gauge
WIKA A-10 ; P# : 45796643  ;  4 ... 20 mA, 2-wire; 0...0.05 bar gauge
WIKA A-10 ; P# : 35128314  ;  4 ... 20 mA, 2-wire; 0...0.1 bar gauge
WIKA A-10 ; P# : 14252508  ;  4 ... 20 mA, 2-wire; 0...0.16 bar gauge
WIKA A-10 ; P# : 14252509  ;  4 ... 20 mA, 2-wire; 0...0.25 bar gauge
WIKA A-10 ; P# : 14252510  ;  4 ... 20 mA, 2-wire; 0...0.4 bar gauge
WIKA A-10 ; P# : 14126782  ;  4 ... 20 mA, 2-wire; 0...0.6 bar gauge
WIKA A-10 ; P# : 13002830  ;  4 ... 20 mA, 2-wire; 0...1 bar gauge
WIKA A-10 ; P# : 12809455  ;  4 ... 20 mA, 2-wire; 0...1.6 bar gauge
WIKA A-10 ; P# : 12742423  ;  4 ... 20 mA, 2-wire; 0...2.5 bar gauge
WIKA A-10 ; P# : 12809447  ;  4 ... 20 mA, 2-wire; 0...4 bar gauge
WIKA A-10 ; P# : 12966224  ;  4 ... 20 mA, 2-wire; 0...6 bar gauge
WIKA A-10 ; P# : 12762831  ;  4 ... 20 mA, 2-wire; 0...10 bar gauge
WIKA A-10 ; P# : 12777588  ;  4 ... 20 mA, 2-wire; 0...16 bar gauge
WIKA A-10 ; P# : 12778908  ;  4 ... 20 mA, 2-wire; 0...25 bar gauge
WIKA A-10 ; P# : 12762858  ;  4 ... 20 mA, 2-wire; 0...40 bar gauge
WIKA A-10 ; P# : 12809331  ;  4 ... 20 mA, 2-wire; 0...60 bar gauge
WIKA A-10 ; P# : 12890449  ;  4 ... 20 mA, 2-wire; 0...100 bar gauge
WIKA A-10 ; P# : 13002856  ;  4 ... 20 mA, 2-wire; 0...160 bar gauge
WIKA A-10 ; P# : 12724859  ;  4 ... 20 mA, 2-wire; 0...250 bar gauge
WIKA A-10 ; P# : 12751198  ;  4 ... 20 mA, 2-wire; 0...400 bar gauge
WIKA A-10 ; P# : 12786943  ;  4 ... 20 mA, 2-wire; 0...600 bar gauge
WIKA A-10 ; P# : 14252511  ;  0 ... 10 V, 3-wire; 0...0.05 bar gauge
WIKA A-10 ; P# : 14252519  ;  0 ... 10 V, 3-wire; 0...0.1 bar gauge
WIKA A-10 ; P# : 14252520  ;  0 ... 10 V, 3-wire; 0...0.16 bar gauge
WIKA A-10 ; P# : 14252523  ;  0 ... 10 V, 3-wire; 0...0.25 bar gauge
WIKA A-10 ; P# : 14252524  ;  0 ... 10 V, 3-wire; 0...0.4 bar gauge
WIKA A-10 ; P# : 14063267  ;  0 ... 10 V, 3-wire; 0...0.6 bar gauge
WIKA A-10 ; P# : 12797902  ;  0 ... 10 V, 3-wire; 0...1 bar gauge
WIKA A-10 ; P# : 14126594  ;  0 ... 10 V, 3-wire; 0...1.6 bar gauge
WIKA A-10 ; P# : 14011272  ;  0 ... 10 V, 3-wire; 0...2.5 bar gauge
WIKA A-10 ; P# : 14006333  ;  0 ... 10 V, 3-wire; 0...4 bar gauge
WIKA A-10 ; P# : 12797881  ;  0 ... 10 V, 3-wire; 0...6 bar gauge
WIKA A-10 ; P# : 12797864  ;  0 ... 10 V, 3-wire; 0...10 bar gauge
WIKA A-10 ; P# : 12797848  ;  0 ... 10 V, 3-wire; 0...16 bar gauge
WIKA A-10 ; P# : 13328906  ;  0 ... 10 V, 3-wire; 0...25 bar gauge
WIKA A-10 ; P# : 14002240  ;  0 ... 10 V, 3-wire; 0...40 bar gauge
WIKA A-10 ; P# : 13258606  ;  0 ... 10 V, 3-wire; 0...60 bar gauge
WIKA A-10 ; P# : 13099729  ;  0 ... 10 V, 3-wire; 0...100 bar gauge
WIKA A-10 ; P# : 14004998  ;  0 ... 10 V, 3-wire; 0...160 bar gauge
WIKA A-10 ; P# : 12889726  ;  0 ... 10 V, 3-wire; 0...250 bar gauge
WIKA A-10 ; P# : 12696839  ;  0 ... 10 V, 3-wire; 0...400 bar gauge
WIKA A-10 ; P# : 12812880  ;  0 ... 10 V, 3-wire; 0...600 bar gauge

Quý khách vui lòng liên hệ Zalo 0909.366.247 để trao đổi chi tiết về sản phẩm này.

Trân trọng cảm ơn.
