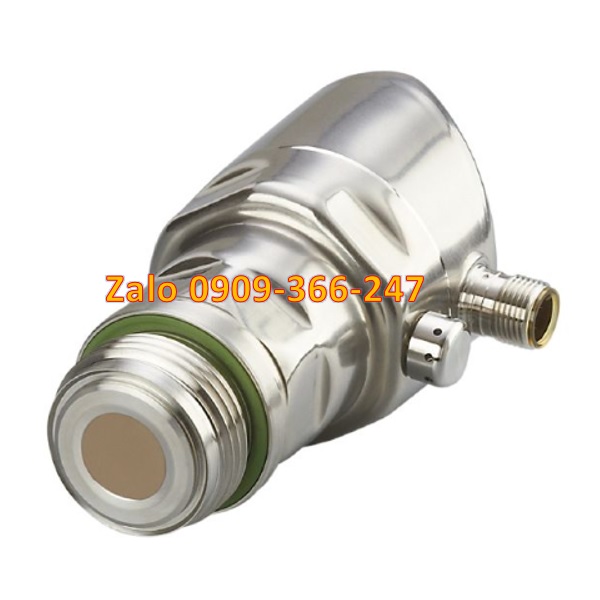

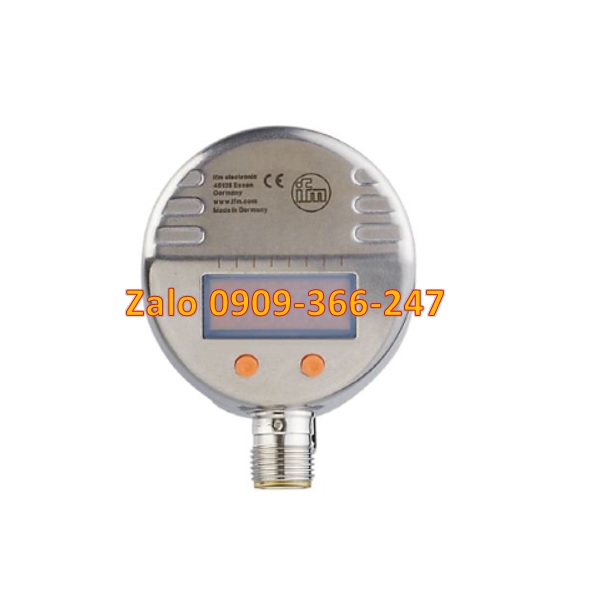

PI 2798 IFM Flush Pressure Sensor 250mbar

SKU-1687909200454

Tiêu đề

P.A Việt Nam tiên phong trong thị trường Internet & Web. Là nhà đăng ký tên miền lớn nhất Việt Nam.

► Hàng mới 100% - chính hãng - xuất hóa đơn VAT

► Bảo Hành 12 tháng -  Hỗ trợ kỹ thuật chu đáo







19.000.000 đ
P.A Việt Nam tiên phong trong thị trường Internet & Web. Là nhà đăng ký tên miền lớn nhất Việt Nam.

Tiêu đề

P.A Việt Nam tiên phong trong thị trường Internet & Web. Là nhà đăng ký tên miền lớn nhất Việt Nam.
P.A Việt Nam tiên phong trong thị trường Internet & Web. Là nhà đăng ký tên miền lớn nhất Việt Nam.
SKU-1687909200454
IFM PI2798

ssP.A Việt Nam tiên phoVui

IFM
Còn hàng
  • Measuring range
    -0.0124...0.25 bar-12.4...250 mbar-5...100.4 inH2O-1.24...25 kPa
  • Robust stainless steel housing for use in the food and beverage industry
  • Hygienic, flush design
  • Resistant to high-pressure cleaning with aggressive cleaning agents
  • High temperature resistance and high protection rating
  • Programmable analogue and switching output
  • Chia sẻ qua viber bài: PI 2798 IFM Flush Pressure Sensor 250mbar
  • Chia sẻ qua reddit bài:PI 2798 IFM Flush Pressure Sensor 250mbar

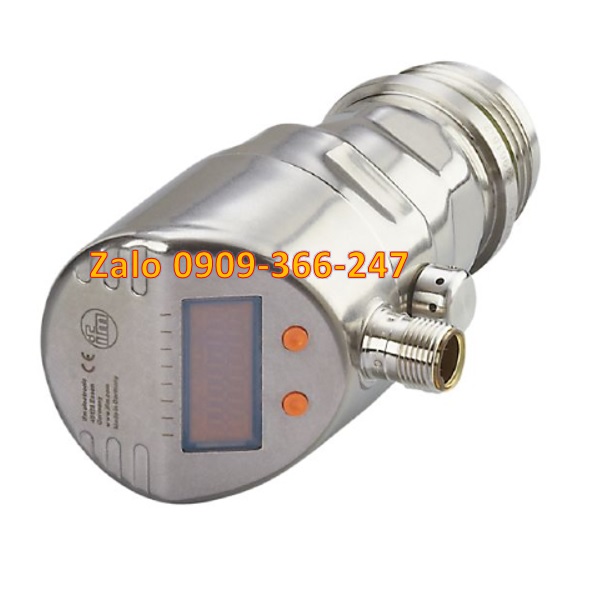

Flush pressure sensor with display PI2798

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range
-0.0124...0.25 bar-12.4...250 mbar-5...100.4 inH2O-1.24...25 kPa
Process connectionthreaded connection G 1 external thread Aseptoflex Vario

Application

Special featureGold-plated contacts
Applicationflush mountable for the food and beverage industry
Mediaviscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]-25...125; (145 max. 1h)
Min. bursting pressure
30000 mbar12044 inH2O3000 kPa
Pressure rating
6000 mbar2400 inH2O600 kPa
Vacuum resistance [mbar]-1000
Type of pressurerelative pressure
No dead spaceyes
MAWP (for applications according to CRN) [bar]10

Electrical data

Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Measuring principlehydrostatic
Integrated watchdogyes

2-wire

Operating voltage [V]20...32 DC
Current consumption [mA]3.6...21
Power-on delay time [s]1

3-wire

Operating voltage [V]18...32 DC
Current consumption [mA]< 45
Power-on delay time [s]0.5

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Number of analogue outputs1
Analogue current output [mA]4...20, invertible; (scalable)
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

2-wire

Max. load [Ω]300

3-wire

Max. voltage drop switching output DC [V]2
Permanent current rating of switching output DC [mA]250
Switching frequency DC [Hz]125
Max. load [Ω](Ub - 10 V) / 20 mA

Measuring/setting range

Measuring range
-0.0124...0.25 bar-12.4...250 mbar-5...100.4 inH2O-1.24...25 kPa
Set point SP
-12...250 mbar-4.8...100.4 inH2O-1.2...25 kPa
Reset point rP
-12.4...249.6 mbar-5...100.2 inH2O-1.24...24.96 kPa
Analogue start point
-12.4...187.4 mbar-5...75.2 inH2O-1.24...18.74 kPa
Analogue end point
50...250 mbar20.1...100.4 inH2O5...25 kPa
In steps of
0.2 mbar0.1 inH2O0.02 kPa
Factory setting
 SP1 = 62.4 mbarrP1 = 57.4 mbar
 SP2 = 187.4 mbarrP2 = 182.4 mbar
 ASP = 0.0 mbarAEP = 250.0 mbar

Accuracy / deviations

Switch point accuracy [% of the span]< ± 0,2; (Turn down 1:1)
Repeatability [% of the span]< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]< ± 0,15; (Turn down 1:1)
Hysteresis deviation [% of the span]< ± 0,15; (Turn down 1:1)
Long-term stability [% of the span]< ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]< ± 0,05; (0...70 °C)
Temperature coefficient span [% of the span / 10 K]< ± 0,15; (0...70 °C)

Response times

Damping process value dAP [s]0...30
Damping for the analogue output dAA [s]0.01...99.99

2-wire

Step response time analogue output [ms]45

3-wire

Min. response time of switching output (dAP) [ms]3
Step response time analogue output [ms]7

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.0
Profilesno profile
SIO modeyes
Required master port typeA
Process data analogue1
Process data binary2
Min. process cycle time [ms]2.3
Supported DeviceIDs
Type of operationDeviceID
Default257

Operating conditions

Ambient temperature [°C]-25...80
Storage temperature [°C]-40...100
ProtectionIP 67; IP 68; IP 69K

Tests / approvals

EMC
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-5 Surge0,5/1 kV
EN 61000-4-6 HF conducted10 V
Shock resistance
DIN IEC 68-2-2750 g (11 ms)
Vibration resistance
DIN IEC 68-2-620 g (10...2000 Hz)
MTTF [years]160
Note on approval
factory certificate available as download at www.factory-certificate.ifm
UL approval
UL Approval no.J018
File number ULE174189

Mechanical data

Weight [g]354
Materialsstainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA
Materials (wetted parts)ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles100 million
Process connectionthreaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display
Display unitLED, green
switching statusLED, yellow
function displayalphanumeric display, 4-digit
measured valuesalphanumeric display, 4-digit
Display unitmbar; kPa; inH2O; mmWS; % of the span

Remarks

Pack quantity1 pcs.

Electrical connection

ConnectionConnector: 1 x M12; coding: A; Contacts: gold-plated
