EMERSON coil ESC 24VAC PCN 801033
Cuộn cảm cho van điện từ
nguồn 24VAC
17VA 50(60)Hz
IP65
ED100%
► Hàng mới 100% - chính hãng - xuất hóa đơn VAT
► Bảo Hành 12 tháng - Hỗ trợ kỹ thuật chu đáo
ssP.A Việt Nam tiên phoVui
ATZ # : STA-806

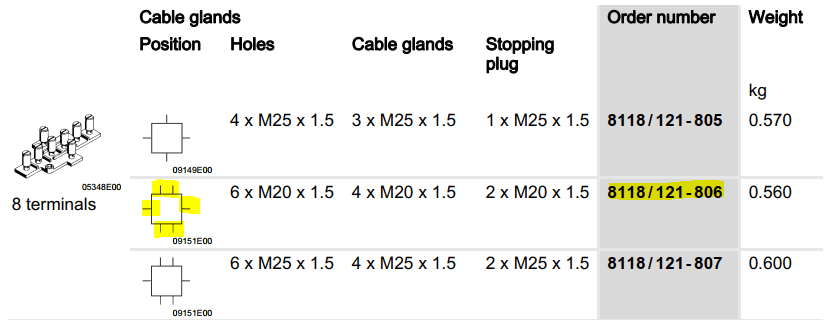

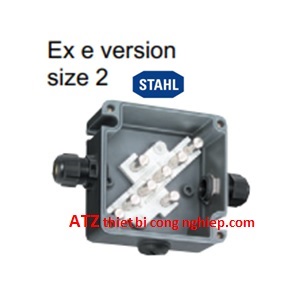

STAHL Ex e junction box 8118/121-806 ( 133120)
Cable glands
4 x Polyamide cable gland M20 x 1,5 4 – 13 mm
2 x Polyamide stopping plug M20 x 1,5
Terminal : 8 x Sheath terminal 6 mm²
Rated operational voltage aC : 750V

| Product Type | Rated operational voltage aC | Cable glands | Terminal | art. no. |
| 8118/121-899-C1028 | 750 V | 6 x Threaded holes M25 x 1,5 | 8 x Sheath terminal 6 mm² | 133175 |
| 8118/121-804-2 | 750 V | 3 x Polyamide stopping plug M25 x 1,5 | 8 x Sheath terminal 6 mm² | 202991 |
| 8118/121-800 | 750 V | – | 8 x Sheath terminal 6 mm² | 133220 |
| 8118/121-638-C1917 | 690 V | 2 x Polyamide cable gland M25 x 1,5 7 – 17 mm 2 x Polyamide cable gland M25 x 1,5 7 – 17 mm | 6 x Sheath terminal 6 mm² | 253858 |
| Product Type | Rated operational voltage aC | Cable glands | Terminal | art. no. |
| 8118/111-503 | 550 V | 3 x Polyamide cable gland M20 x 1,5 4 – 13 mm 1 x Polyamide stopping plug M25 x 1,5 | 5 x Sheath terminal 4 mm² | 133248▲ |
| 8118/111-503-C1629 | 550 V | 2 x Polyamide cable gland M20 x 1,5 4 – 13 mm 2 x Polyamide stopping plug M20 x 1,5 | 5 x Sheath terminal 4 mm² | 223876 |
| 8118/111-401 | 550 V | 2 x Polyamide cable gland M20 x 1,5 4 – 13 mm 1 x Polyamide stopping plug M20 x 1,5 | 4 x Sheath terminal 4 mm² | 133077▲ |
| 8118/121-899-C1046 | 750 V | 5 x Polyamide cable gland M25 x 1,5 7 – 17 mm | 8 x Sheath terminal 6 mm² | 133179 |
| 8118/121-899-C1585 | 690 V | 2 x Polyamide cable gland M16 x 1,5 2 – 9 mm 2 x Polyamide cable gland M25 x 1,5 7 – 17 mm | 8 x Sheath terminal 6 mm² | 218006 |
| 8118/121-807 | 750 V | 4 x Polyamide cable gland M25 x 1,5 7 – 17 mm 2 x Polyamide stopping plug M25 x 1,5 | 8 x Sheath terminal 6 mm² | 133126▲ |
| 8118/121-806 | 750 V | 4 x Polyamide cable gland M20 x 1,5 4 – 13 mm 2 x Polyamide stopping plug M20 x 1,5 | 8 x Sheath terminal 6 mm² | 133120▲ |
| 8118/121-805 | 750 V | 3 x Polyamide cable gland M25 x 1,5 7 – 17 mm 1 x Polyamide stopping plug M25 x 1,5 | 8 x Sheath terminal 6 mm² | 133114▲ |
| 8118/121-539 | 750 V | 2 x Polyamide cable gland M25 x 1,5 7 – 17 mm | 5 x Sheath terminal 6 mm² | 133253 |
| 8118/121-538 | 750 V | 4 x Polyamide cable gland M25 x 1,5 7 – 17 mm | 5 x Sheath terminal 6 mm² | 133252▲ |
| 8118/121-538-C1139 | 750 V | 4 x Polyamide cable gland M25 x 1,5 7 – 17 mm 2 x Polyamide stopping plug M25 x 1,5 | 5 x Sheath terminal 6 mm² | 133190 |
| 8118/121-507-C1140 | 750 V | 6 x Polyamide cable gland M25 x 1,5 7 – 17 mm 2 x Polyamide stopping plug M25 x 1,5 | 5 x Sheath terminal 6 mm² | 133191 |
| Product Type | Rated operational voltage aC | Cable glands | Terminal | art. no. |
| 8118/131-899-C1036 | 750 V | 4 x Polyamide cable gland M32 x 1,5 9 – 21 mm | 8 x Sheath terminal 10 mm² | 133178 |
| 8118/131-814 | 750 V | 6 x Polyamide cable gland M25 x 1,5 7 – 17 mm 4 x Polyamide stopping plug M25 x 1,5 | 8 x Sheath terminal 10 mm² | 133210▲ |
| 8118/131-811 | 750 V | 4 x Polyamide cable gland M32 x 1,5 9 – 21 mm 2 x Polyamide stopping plug M32 x 1,5 | 8 x Sheath terminal 10 mm² | 133186▲ |
| Product Type | Rated operational voltage aC | Cable glands | Terminal | art. no. |
| 8118/121-848-C1814 | 690 V | 6 x Threaded holes M20 x 1,5 | 8 x Sheath terminal 6 mm² | 249589 |
| Product Type | Rated operational voltage aC | Cable glands | Terminal | art. no. |
| 8118/211-403 | 60 V | 3 x Polyamide cable gland M25 x 1,5 7 – 17 mm 1 x Polyamide stopping plug (Provided separately) M25 x 1,5 | 4 x Sheath terminal 4 mm² | 133104▲ |
| 8118/211-401 | 60 V | 2 x Polyamide cable gland M20 x 1,5 4 – 13 mm 1 x Polyamide stopping plug (Provided separately) M20 x 1,5 | 4 x Sheath terminal 4 mm² | 133084 |
| 8118/221-899 | 60 V | – | 8 x Sheath terminal 6 mm² | 133219 |
| 8118/113-303 | 250 V / 500 V | 2 x 2 x | 3 x Sheath terminal 4 mm² | 133078 |
| Brass plate with thread |
| 133208 |
| for cable glands 1 x M20 x 1.5 for earth continuity when using metal glands can be installed into: enclosure size 1 side C / D enclosure size 2 side C / D enclosure size 3 side C / D |
| 133182 |
| for cable glands 2 x M20 x 1.5 / 1 x M25 x 1.5 / 1 x M32 x 1.5 for earth continuity when using metal glands threads are cut acc. to order can be installed into: enclosure size 2 side C / D enclosure size 3 side C / D |
| 133198 |
| for cable glands 2 x M25 x 1.5 for earth continuity when using metal glands can be installed into: enclosure size 2 side C / D enclosure size 3 side C / D |
| 133202 |
| for cable glands 2 x M32 x 1.5 for earth continuity when using metal glands can be installed into: enclosure size 3 side C / D |
R. Stahl Junction Boxes
| R. Stahl | Junction Boxes | Series 8102 |
| R. Stahl | Junction Boxes | order number |
| R. Stahl | Junction Boxes | 8102/21-31 |
| R. Stahl | Junction Boxes | 8102/22-31 |
| R. Stahl | Junction Boxes | 8102/21-32-C995 |
| R. Stahl | Junction Boxes | 8102/21-42-C1151 |
| R. Stahl | Junction Boxes | 8102/21-32-C1013 |
| R. Stahl | Accessories and Spare Parts | Series 8102 |
| R. Stahl | Accessories and Spare Parts | order number |
| R. Stahl | Semi gland | 140474 |
| R. Stahl | Cable gland | 138518 |
| R. Stahl | Cable gland | 138520 |
| R. Stahl | Stopping plug | 143522 |
| R. Stahl | Stopping plug | 143524 |
| R. Stahl | Junction Boxes | Series 8118 |
| R. Stahl | Junction Boxes | order number |
| R. Stahl | Junction Boxes | 8118/111-401 |
| R. Stahl | Junction Boxes | 8118/111-503 |
| R. Stahl | Junction Boxes | 8118/111-.99 |
| R. Stahl | Junction Boxes | 8118/211-40 |
| R. Stahl | Junction Boxes | 8118/211-403 |
| R. Stahl | Junction Boxes | 8118/211-.99 |
| R. Stahl | Junction Boxes | 8118/121-805 |
| R. Stahl | Junction Boxes | 8118/121-806 |
| R. Stahl | Junction Boxes | 8118/121-807 |
| R. Stahl | Junction Boxes | 8118/121-538 |
| R. Stahl | Junction Boxes | 8118/121-539 |
| R. Stahl | Junction Boxes | 8118/121-.99 |
| R. Stahl | Junction Boxes | 8118/221-899 |
| R. Stahl | Junction Boxes | 8118/131-811 |
| R. Stahl | Junction Boxes | 8118/131-814 |
| R. Stahl | Junction Boxes | 8118/131-.99 |
| R. Stahl | Junction Boxes | 8118/231-899 |
| R. Stahl | Junction Boxes | 8118/113-303 |
| R. Stahl | Junction Boxes | 8118/123-.99 |
| R. Stahl | Accessories and Spare Parts | Series 8118 |
| R. Stahl | Accessories and Spare Parts | order number |
| R. Stahl | Brass plate with thread | 133208 |
| R. Stahl | Brass plate with thread | 133182 |
| R. Stahl | Brass plate with thread | 133198 |
| R. Stahl | Brass plate with thread | 133202 |
| R. Stahl | Cross connector | 133348 |
| R. Stahl | Cross connector | 133366 |
| R. Stahl | Cross connector | 133385 |
| R. Stahl | Fuse | 8560/51-4021 |
| R. Stahl | Fuse | 8560/51-4031 |
| R. Stahl | Fuse | 8560/51-4041 |
| R. Stahl | Fuse | 8560/51-4051 |
| R. Stahl | Fuse | 8560/51-4061 |
| R. Stahl | Fuse | 8560/51-4071 |
| R. Stahl | Fuse | 8560/51-4081 |
| R. Stahl | Fuse | 8560/51-4091 |
| R. Stahl | Fuse | 8560/51-4101 |
| R. Stahl | Fuse | 8560/51-4111 |
| R. Stahl | Fuse | 8560/51-4131 |
| R. Stahl | Fuse | 8560/51-4141 |
| R. Stahl | Fuse | 8560/51-4151 |
| R. Stahl | Fuse | 8560/51-4171 |
| R. Stahl | Fuse | 8560/51-4181 |
| R. Stahl | Fuse | 8560/51-4191 |
| R. Stahl | Fuse | 8560/51-4222 |
| R. Stahl | Fuse | 8560/51-4252 |
| R. Stahl | Fuse | 8560/61-4051 |
| R. Stahl | Fuse | 8560/61-4061 |
| R. Stahl | Fuse | 8560/61-4071 |
| R. Stahl | Fuse | 8560/61-4091 |
| R. Stahl | Fuse | 8560/61-4101 |
| R. Stahl | Fuse | 8560/61-4111 |
| R. Stahl | Fuse | 8560/61-4131 |
| R. Stahl | Fuse | 8560/61-4141 |
