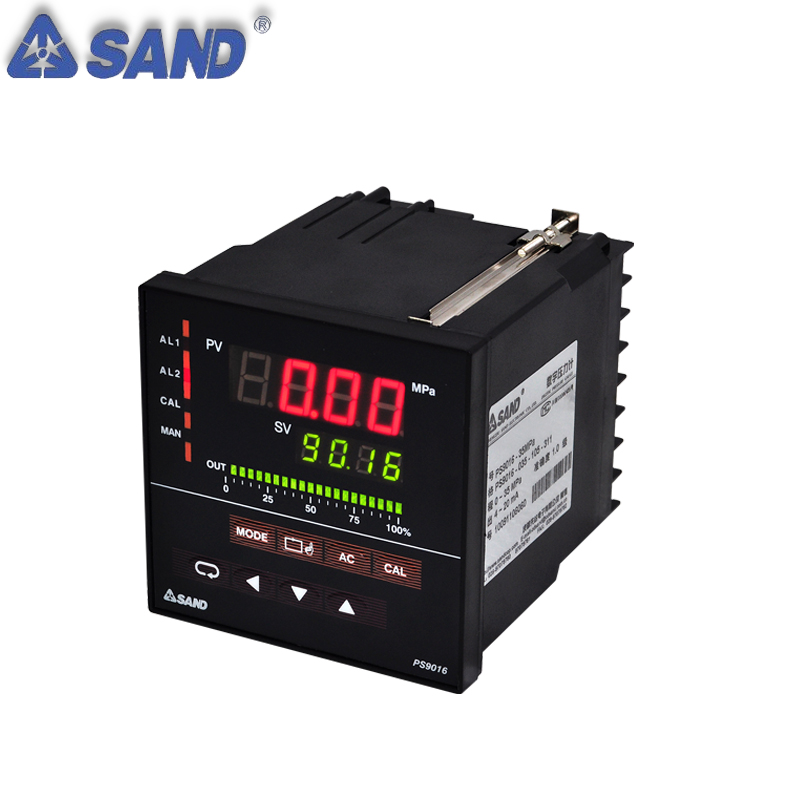

PS9016 intelligent digital PID pressure controller(SAND)
Feature
- Pressure range,Decimal point location are available to be adjusted optionally
- PID control output signal 4~20mA,0~10mA,0~20mA,0~10V,0~5V,1~5V,available to be adjusted in parameters menu
- RS485 communication supported
- Two configurable alarms High/Low/Off
- Automatic or Manual calibration
1. Pressure range and decimal point location can be programmed;
2. Single PID pressure control signal output, providing multiple output signals (eg: 0~10V, 0~5V, 0~20mA, 4~20mA,), programmable;
3. Two alarm outputs, multiple alarm modes can be programmed;
4. Automatic calibration and panel error correction function;
5. Compatible with multiple pressure transducer and transmitter input signal;
6. Four digital displays with two layers and double colors and 20 segments electronic bar indicate the output power;
7. Provide RS485 computer communication interface (optional);
8. Triple combination of anti-jamming technology to ensure more accurate;
9. More than 20,000 hours of trouble-free operation;
10. with manual and automatic Switching feature to control output power.
Pressure range | 0~1500bar;0~20000psi |
Power supply | 85~265VAC;24VDC;110VAC;220VAC;240VAC |
PID output signal | 0~5V,1~5V,0~10V,0~10mA,0~20mA,4~20mA(Programmable ) |
Alarm | Two-way upper and lower limited relay alarm |
Relay contact output | 250VAC,5A |
Input signal | 2.0mV/V,3.33mV/V,0~20mA,4~20mA,0~10V,0~5V,1~5V |
Communication | RS485 |
Mailing Address | 0001~0255 |
Communication baud rate | 2400bps,4800bps,9600bps,19200bps,38400bps |
Inner resolution | 32000 |
Ambient temperature | -10 C~50 C |
Ambient humidity | <80%RH |
Order format
Model | Range | Power Supply | Output | Alarm | Input | Communication |
PS9016 96*96* 112mm | 0~1500bar, 0~20000psi | 85~265VAC 24VDC 110VAC 220VAC 240VAC | 20X:PID Output 201:0~5V PID 220:1~5V PID 203:0~10mA PID 204:0~20mA PID 205:4~20mA PID 206:0~10V PID 2XX:Linear&PID Output 21X:0~5V/PID 22X:1~5V/PID 23X:0~10mA/PID 24X:0~20mA/PID 25X:4~20mA/PID 26X:0~10V/PID | 300:No Alarm
Relay Alarm
310:up
311:up/low
312:up/up
313:up/up/low
314:low
SCR Alarm
320:up
321:up/low
322:up/up
323:up/up/low
324:low
Voltage Pulse Alarm
330:up
331:up/low
332:up/up
333:up/up/low
334:low | Null:Default 2.0mV/V 420:2.0mV/V 430:3.0mV/V 433:3.3mV/V 402:0~20mA 442:4~20mA 401:0~10V 405:0~5V 415:1~5V | Null: No 7R:RS485 7C:CANopen |
Example: PS9016-050-122-205-311-433-5D-7R
Product Model "PS1016",Intelligent pressure indicator.
Pressure Range Code "050",The pressure range is 0~50MPa
Power Code "122", The supply power is 220V AC
Output Signal Code "205",Adopts 4~20mA PID output
Alarm Methods Code "311",Adopts 2-way relay top and bottom limitation alarm
Input Signal Code "433",Mating for the transducer that has 3.33mV/V output
Shape Code "5D",The overall dimension is 96*96mm
Communication Method Code "7R",Adopts RS485 communication interface.
Vacancies and not marked function codes are the default values
