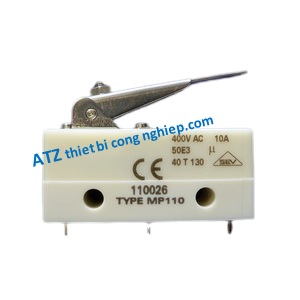

Sealed basic snap action microswitch. A precision microswitch for high breaking capacity, the MP110 serie offers IP67 protection using wide range of interchangeable actuators.
The switching mechanism is completely protected by the housing, which is itself assembled by ultrasonic welding. However, as it has protruding connection terminals, it has to be provided with an accessory system of connection,
which can be :
- Push-on clips 6.35 x 0.80 mm (AMP)
- Plug-in system of connection MP100-.. IP67
- Protective terminal covers MP110-Z.. IP64
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Terminal Option
MP100-K(L)/10 PVC cable 3 x 1 mm2 -20°C to +70°C; 400VAC 10A
MP100-K(L)/15 PVC cable 3 x 1.5 mm2 -20°C to +70°C; 250VAC 15A
MP100-SI(L)/10 Silicone cable 3 x 1 mm2 -40°C to +130°C; 400VAC 10A
MP100-SI(L)/15 Silicone cable 3 x 1.5 mm2 -40°C to +130°C; 250VAC 15A
MP100-PUR(L)/10 Polyurethane cable 3 x 1 mm2 -40°C to +90°C; 400VAC 10A
MP100-PUR(L)/15 Polyurethane cable 3 x 1.5 mm2 -40°C to +90°C; 250VAC 15A
L : Length of the cable in meter
Ordering information
| MP111-8AL40 |
| MP111-1A |
| MP111-7A40 |
| MP111-1S29 |
| MP110-0 |
| MP111-3A |
| MP110-1A |
| MP111-0 |
| MP111-6AL |
| MP110-3A |
| MP110-6AL |
| MP110-1S29 |
| MP110-1BLA |
| MP110-8AL40 |
| MP110-7A40 |
| MP110-1A58 |
| MP110-5AL |
| MP111-7AC |
| MP111-1A58 |
| MP111-1BLA |
| MP111-5AL |
| MP110-7AC |
| MP110-1BT |
| MP110-1BTA |
| MP110-5BL |
| MP110-5AT |
| MP110-5BT |
| MP110-6BL |
| MP110-3B |
| MP110-3BS |
| MP110-8AL120 |
| MP110-8AT40 |
